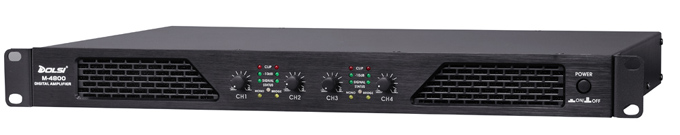

Patented 1 U Class-D Digital Power Amplifier
M Series
. Independant PCB module, easy to do replacement and maintainance
. Small size and light weight, easy to move and install
. Long lasting stability
SPECIFICATIONS
| 1 U Digital Power Amplifier |
| Model No. | M3600 | M4800 |
| Channel number | 2 channel | 4 channel |
| Rated output power | 8Ω | 300Wx2 | 300Wx4 |
| Rated output power | 4Ω | 500Wx2 | 500Wx4 |
| Bridged output power | 8Ω | 1000Wx1 | 1000Wx2 |
| Distortion( 1kHZ,=10dB/4 Ohms) | <0.2% |
| S/N Ratio (20Hz-20Khz,4 Ohms) | >112dBA |
| Cross-talk (1kHZ, 4 Ohms) | >40dB |
| Frequency response | 10Hz to 20k Hz,+/-1dB |
| Input impedance | balanced 20K/ non-balanced 10K |
| Damping factor (10-400Hz,8Ohms) | >300 |
| Output category | Class D |
| Input sensitivity | 0.775V,0dB |
| Protection funtions | Protections against short circuit, direct current, over-load, over heat, on/off switching, muting, radio-interference. Good amplitude limit. |
| Control knobs | power ON/OFF switch,VOLUME control in front panel . STEREO/BRIDGE/MONO switch in rear panel . |
| LED indicators | CLIP/-10dB/SIGNAL/MONO/BRIDGE/STATUS indicators in front panel |
| Power delay | 4 seconds |
| Input interface | XLR input socket |
| Output interface | SPEAKON connector |
| Size (WxHxD) | 483x44x350mm |
| Net weight | M-3600: 4.95kg, M-4800: 6.30kg |
| Packing size (WxHxD) | 560x120x470 mm (0.032cbm) |
PRODUCT FEATURES
. Unique and elegant enclosure design.
. Carefully selected high quality components. The complete machine is with CCC, CB and CE certification and with RoHS compliance.
. Compact structure in only 1 unit of height and light weight, easy to move and install.
. Class D Toplogy integrated with switch power supply design
. Powerful output and high efficiency
. Low electricity consumption
. Accurate volume control, switch on/off, signal, clip and protection LED light in front panel
. Full automatic rotections against short circuit, direct current, over-load, over heat,
on/off switching, muting, radio-interference. Good amplitude limit.
. Nice Cooling system.
. XLR balance input and professional SPEAKON output connectors.
. Stereo ,bridge and mono mode selection pull switch is set on back panel.
|
|
